Használt csuklós présgépek - Used Knuckle Presses

HANIL HKCA-250 "Single Knuckle Press" – 2024 y.

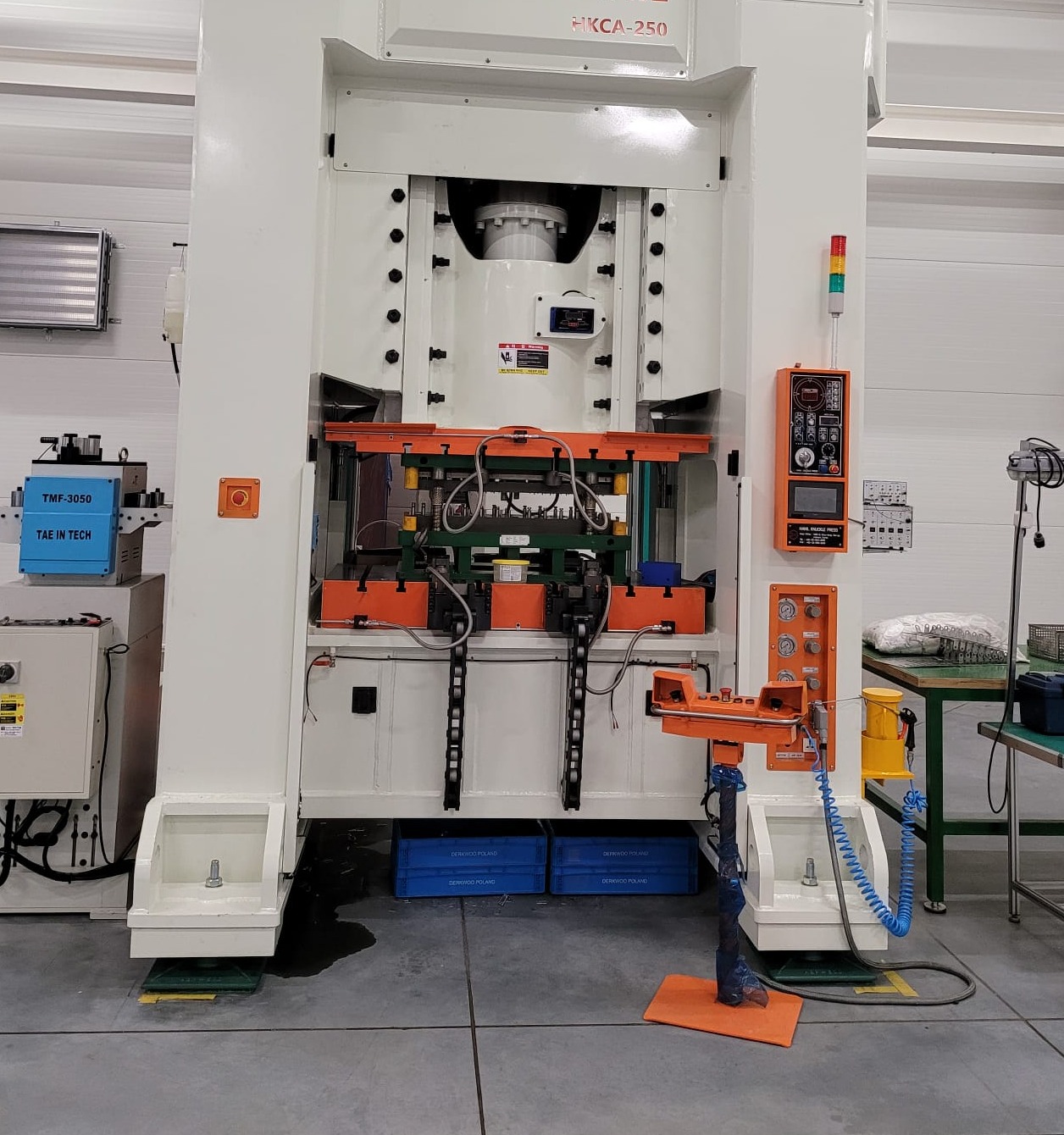

HANIL HKCA-250 Single Knuckle Press, complete with leveler and feeder units.
Offer Details:

HANIL HKCA‑250 – Technical Summary

Type: Knuckle‑joint press

Manufacturer: HANIL KNUCKLE PRESS CO., LTD (Korea)

Model: HKCA‑250

Manufacturing date: April 2024

Serial number: 2509200

Key specifications:

• Capacity: 250 tons (250 × 5 tons × mm)

• Stroke length: 100 mm

• Strokes per minute: 80 SPM

• Die height: 450 mm

• Shut height: 630 mm

• Slide adjustment: 100 mm

• Slide area (LR × FB): 1300 × 650 mm

• Bolster area (LR × FB): 1500 × 800 mm

• Bolster thickness: 180 mm

• Max. tool dimension: 1300 × 450 mm

• Max. tool mass: 1300 kg

• Machine mass: 30 tons

• Air pressure requirement: 5 kg/cm²

• Safety distance: 430 mm

• Rated voltage: 3P 380VAC 50/60Hz

• Control voltage: DC 24V

• Rated current: 62.7 A

• Interruptor capacity: 100 A

• SCCR: 10 kA

• Light curtain: SK‑S216P / S256P
